This 3-in-1 travel adapter offers a portable solution for connecting your USB-C computer to a VGA, DVI, or HDMI® display.

The travel adapter is compatible with your DP alt mode computer. DP alt mode means your computer can pass a DisplayPort video signal through the USB-C port.

Stylish connectivity for your USB-C laptop

Photograph of the adapter connected to the Dell XPS

This travel adapter comes with a built-in black USB-C cable and works well with your Dell XPS™, MacBook and any device that supports USB-C DP alt mode.

All-in-one video connectivity, with travel in mind

Instead of carrying three separate video adapters in your laptop bag, this 3-in-1 adapter gives you all the video outputs you'll need. With VGA, DVI and HDMI outputs, this adapter lets you connect from your laptop's USB Type-C port to almost any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type.

With support for multiple video outputs and a small-footprint design, this adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office.

Innovative, built-in cable manager

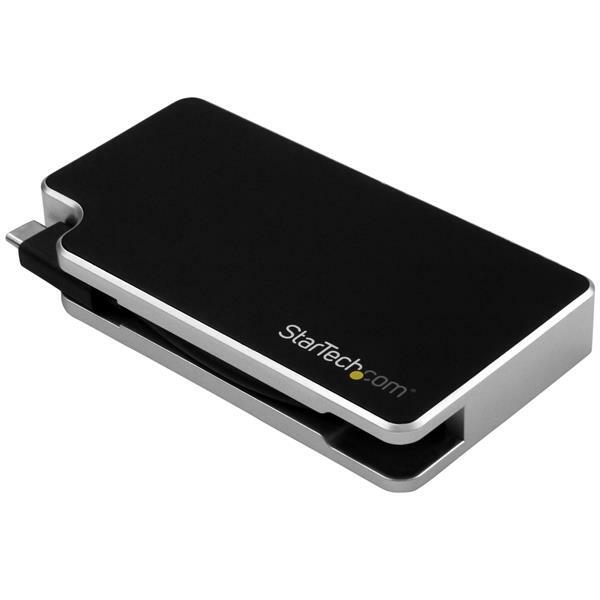

The adapter features a built-in cable fastener. Simply tuck the cable into place along the side of the adapter for quick and secure storage while you’re traveling to ensure the adapter is neatly stored in your travel bag.

Astonishing picture quality

The HDMI output on this travel adapter supports Ultra HD 4K resolutions, providing four times the picture quality of high-definition 1080p. The HDMI output is also backward compatible with lower resolutions, such as 1080p and 720p, so the adapter is also perfect for your legacy video equipment. The VGA and DVI outputs also support high-definition maximum resolutions of up to 1920 x 1200, so you can still enjoy excellent video quality.

The travel adapter is compatible with USB Type-C Intel® Thunderbolt™ 3 devices that are capable of outputting a DisplayPort signal.

The CDPVGDVHDB is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Notes:

  • macOS 10.12.6 or later is required for your MacBook to support this product.

  • Your USB-C equipped host laptop must support video (DP alt mode) to work with this adapter. The adapter does not support USB Power Delivery.

Applications

  • Carry the adapter with you when you travel, and connect to almost any display
  • Connect your BYOD Dell XPS, Chromebook Pixel, MacBook or other USB-C laptop or tablet to a provided VGA, DVI or HDMI display at work
  • Connect a VGA, DVI or HDMI monitor to your USB-C laptop, to use as a secondary monitor

(CDPVGDVHDB)

Warranty Information
Warranty 3 Years
Hardware
Active or Passive Adapter Active
Adapter Style Adapters
AV Input USB Type-C
AV Output DVI
HDMI
VGA
Chipset ID Cypress - CYPD2120-24LQXIT
Cypress - CY7C65217
Analogix - ANX9847FN-AA-R
MegaChips - MCDP2850-BC
Performance
Audio Specifications HDMI output - 7.1 surround sound
General Specifications Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.
Maximum Analog Resolutions 1920 x 1200 @ 60Hz
Maximum Digital Resolutions 3840 x 2160 @ 30Hz
Supported Resolutions HDMI output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720

DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720
Video Revision DisplayPort 1.2
HDMI 1.4
Wide Screen Supported Yes
Connector(s)
Connector A 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input
Connector B 1 - VGA (15 pin, High Density D-Sub) Female Output
1 - DVI-I (29 pin) Female Output
1 - HDMI (19 pin) Female Output
Special Notes / Requirements
Note macOS 10.12.6 or later is required for your MacBook to support this product.
Your USB-C equipped host laptop must support video (DP alt mode) to work with this adapter. The adapter does not support USB Power Delivery.
System and Cable Requirements Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
Environmental
Humidity 5~95% RH
Operating Temperature 5°C to 35°C (41°F to 95°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Physical Characteristics
Cable Length 3.5 in [90 mm]
Color Black & Silver
Enclosure Type Plastic
Product Height 0.7 in [1.8 cm]
Product Length 4.3 in [11 cm]
Product Width 2.4 in [60 mm]
Weight of Product 2.4 oz [67 g]
Packaging Information
Package Height 1.3 in [32 mm]
Package Length 6.9 in [17.4 cm]
Package Width 5.7 in [14.4 cm]
Shipping (Package) Weight 0.4 lb [0.2 kg]
What's in the Box
Included in Package 1 - USB-C travel adapter
SKU CDPVGDVHDB
Barcode # 65030864442
Brand Startech
Shipping Weight 0.5000kg
Manufacturer Warranty: 2 Years Limited Warranty
