Critical Power, Cooling and Racks > Uninterruptible Power Supply (UPS) > Network and Server > Smart-UPS > SMT2200RMI2UC

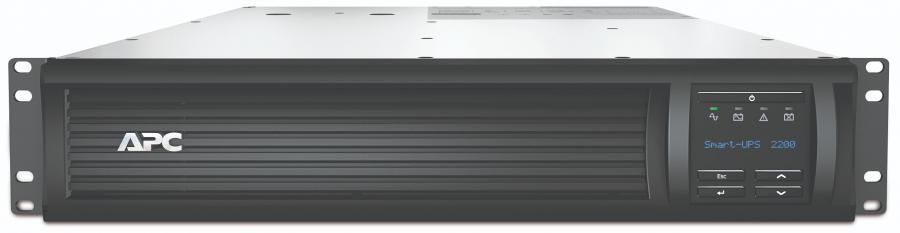

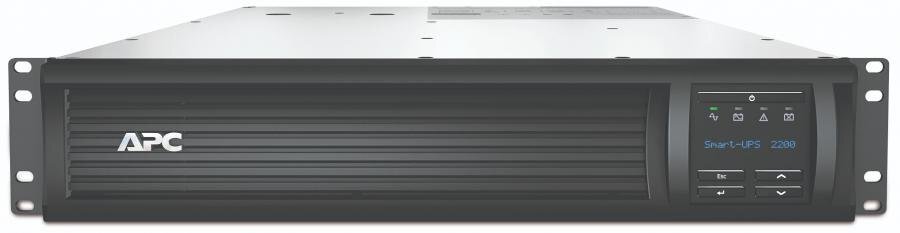

APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V, 8x IEC C13+1x IEC C19 outlets, SmartConnect Port+SmartSlot, AVR, LCD

SKU: SMT2200RMI2UC | Brand: APC Brand

Key Features

<a>Replacement battery (1)</a> is available
2200VA/1980W line interactive pure sine wave 2U rackmount UPS
Ideal for servers, storage, network closets, business VoIP and retail POS
Automatic Voltage Regulation helps correct utility voltage
Cloud-based remote power monitoring via SmartConnect Ethernet Port
Graceful shutdown using serial or USB cables via PowerChute Business Edition

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity.
The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions.
It comes with IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P input cables, 8x IEC 320 C13 and 1x IEC 320 C19 outlets, and 3x IEC jumper cables.
It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions.
It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown.
The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
It provides surge protection against lightning strikes, power sags, brownouts and surges.
The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Product Images

Downloads & Documents

Compatible Products & Accessories

Mounting

AP9625

APC SmartUPS/SmartUPS RT 2 Post Rail Kits

PDU

AP6003A

RACK PDU, BASIC, HALF HEIGHT, 100-240V/20A, 220-240V/16A, (1...

AP6015A

RACK PDU, BASIC, 0U/1U, 120-240V/15A, 220-240V/10A, (8) C13

AP6020A

APC NetShelter Basic Rack PDU, 0U, 1PH, 3.3kW, 100-240V 20A...

AP6120A

Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (7) C13,...

AP7552

Rack PDU,Basic, Zero U, 16A, 230V, (20) C13 & (4) C19 , IEC ...

AP7820B

Rack PDU, Metered, 1U, 12A/208V, 10A/230V, (8) C13

AP7821B

Rack PDU, Metered, 1U, 16A, 208/230V, (8) C13

AP7850B

Rack PDU, Metered, Zero U, 10A, 230V, (16) C13

AP7920B

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or...

AP7921B

APC NetShelter Switched Rack PDU, 1U, 1PH, 3.7kW 230V 16A or...

AP7950B

Rack PDU, Switched, Zero U, 10A, 230V, (16) C13

AP8459WW

Rack PDU 2G, Metered-by-Outlet, ZeroU, 16A, 100-240V, (21) C...

Racks

AR3130

APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991H ...

AR3140

APC NetShelter SX, Networking Rack Enclosure, 42U, Black, 19...

AR3140W

APC NetShelter SX, Networking Rack Enclosure, 42U, White, 19...

AR3150

APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991.4...

AR3150SP

APC NetShelter SX, Server Rack Enclosure, 42U, Shock Packagi...

AR3150W

APC NetShelter SX, Server Rack Enclosure, 42U, White, 2258H ...

AR201

NetShelter 2 Post Rack 45U #12-24 Threaded Holes Black

AR3155

APC NetShelter SX, Server Rack Enclosure, 45U, Black, 2124H ...

AR3155SP

APC NetShelter SX, Server Rack Enclosure, 45U, Shock Packagi...

AR3157

APC NetShelter SX, Server Rack Enclosure, 48U, Black, 2258H ...

AR3157SP

APC NetShelter SX, Server Rack Enclosure, 48U, Shock Packagi...

AR3200

APC NetShelter SX, Server Rack Enclosure, Colocation, 42U, B...

Replacement battery

RBC43

APC Replacement Battery Cartridge for Smart-UPS Line Interac...

Sensors

AP9335T

Wired, Sensor, NetBotz, Temperature, 13 ft

AP9335TH

APC Temperature & Humidity Sensor

Service bypass panels

SBP3000RMHW

APC SERVICE BYPASS PDU, 230V 16AMP Hardwire

SBP3000RMI

APC SERVICE BYPASS PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C1...

SmartSlot

AP9620

Protocol translation to UPS-Link, Management Options, Legacy...

AP9640

Device monitoring and management, Network Management Cards, ...

AP9641

Device monitoring and management, Network Management Cards, ...

AP9643

Device monitoring and management, Network Management Cards, ...

AP9810

Dry contact, Management Options, Dry Contact I/O Accessory, ...

Subscriptions

ERWPMON1-1Y-DIGI

Subscription, EcoStruxure IT SmartConnect, Standard 1Y Plan,...

ERWPMON1-3Y-DIGI

Subscription, EcoStruxure IT SmartConnect, Standard 3Y Plan,...

ERWPMON1-5Y-DIGI

Subscription, EcoStruxure IT SmartConnect, Standard 5Y Plan,...

ERWPLUS1-1Y-DIGI

Subscription, EcoStruxure IT SmartConnect, Advanced 1Y Plan,...

ERWPLUS1-3Y-DIGI

Subscription, EcoStruxure IT SmartConnect, Advanced 3Y Plan,...

ERWPLUS1-5Y-DIGI

Subscription, EcoStruxure IT SmartConnect, Advanced 5Y Plan,...

(SMT2200RMI2UC)

Specifications - SMT2200RMI2UC

Overview

Presentation	Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time	Usually in Stock

Main

Main Input Voltage	230 V AC 1 phase
Input voltage	220 V 240 V
Input Connection Type	BS1363A British IEC 320 C20 Schuko CEE 7 / EU1-16P
Input voltage limits	151...302 V adjustable 160...286 V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing
Output voltage	220 V 240 V
Rated power in W	1980 W
rated power in VA	2200 VA
Output connection type	8 IEC 320 C13 3 IEC Jumpers 1 IEC 320 C19
Harmonic distortion	Less than 5 %
Maximum configurable power in VA	2200 VA
Maximum configurable power in W	1980 W
Transfer time	6 ms typical : 10 ms maximum
UPS type	Line interactive
Wave type	Sine wave
Output frequency	50/60 Hz +/- 3 Hz sync to mains

Complementary

Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Battery type	Lead-acid internal included
Control panel	Multifunction LCD status and control console
Free slots	1
Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
UPS connectivity	Serial port USB port SmartConnect port Available expansion slot
Surge energy rate	375 J
Number of rack unit	2U
Cable length	2.00 m
Number of cables	1
Height	86 mm
Width	432 mm
Depth	683 mm
Net weight	42.31 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Rack-mounted with included kit
Two post mountable	0
USB compatible	No
Provided equipment	Documentation CD Rack mounting hardware Rack mounting support rails USB cable
Number of power module	0
Number of power module filled slots	0
Number of power module free slots	0
Additional specification	Cloud-enabled monitoring
Redundant	No
Range of product	Smart-UPS
Product or component type	Uninterruptible power supply (UPS)

Environment

Product certifications	CE EAC IRAM RCM VDE UK PSTI
Marking	GS Mark
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
Relative humidity	0…95 %
Storage Relative Humidity	0…95 %
Acoustic level	55 dBA
Heat dissipation	215 Btu/h
Operating altitude	0...10000 ft

Batteries & Runtime

Run Time	View Runtime Graph
Efficiency	View Efficiency Graph
Battery type	Lead-acid battery
Extended runtime	0
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	3 h
Number of battery replacement quantity	1
Battery life	3…5 year(s)
Replacement battery	RBC43
Battery charger power	169 W rated

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	98.044 cm
Package 1 Width	59.995 cm
Package 1 Length	25.400 cm
Package 1 Weight	49.628 kg
